400 Series

Contacteaza-ne »
  • Kezdőlap
  • Generators Engine
  • 400 Series
Previous Next
  • Presentation
  • Tehnical details
  • Photo Gallery

Presentation

Specifications

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 liters range. The 2,3 and 4 cylinder are Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, those engines are the ideal engines for small industrial applications. Their simple and robust mechanical fuel system makes it easy to install and maintain.

Designed to comply the EU Stage IIIA/IIIB/IV or U.S. EPA Tier 4 Interim/Tier 4 Final equivalent requirements, Perkins smallest engine, combines impressive performance, low operating costs and an ultra-compact, efficient package ideally suited to a wide range of small off-highway applications.

Benefits & Features

A lifetime of low cost

The 400 Series offers highly competitive performance and fuel economy. Through appropriate use of technology, these engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.

Across an extensive power band, the 400 Series range offers you the ability to configure a solution to your specific machine, territory and market requirements.

Overlapping power bands between models and an extensive range of options give the opportunity to optimize performance and functionality, adding customer value to the application.

We provide one year warranties for constant speed engines and two year warranties for variable speed models as standard. As a 400 Series end user, you also benefit from Perkins world class product support and service coverage that comes from being a full range power solutions provider.

Compact design

The compact design of these engines makes them suitable for a range of applications, including skid steer loaders, mini excavators, wheel loaders, welders, lift platforms, lighting towers, small tractors, air compressors, turf care machinery and materials handling machinery.

Each of the six core engines of the 400 Series is configured for either Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emission standards, giving you flexibility depending on your market.

Performance and refinement

The 400 Series lineup gives you a seamless power range of 8.2-50 kW (11-67 HP) in 2, 3 and 4 cylinder models designed with a familiar look and feel. The range offers a wide variety of ratings and configurations which can be tailored to meet the most exacting needs.

The selective use of indirect and direct injection fuel systems enables Perkins to offer world-class engine refinement and low noise levels.

Tehnical details

Model Power (kWm) Autonomy (he) Power (kVA) Emissions Specifications sheets
402D-05G 5 – 10 4 – 8 5 – 10 EU Stage IIIA/US EPA Tier 3 Data sheet

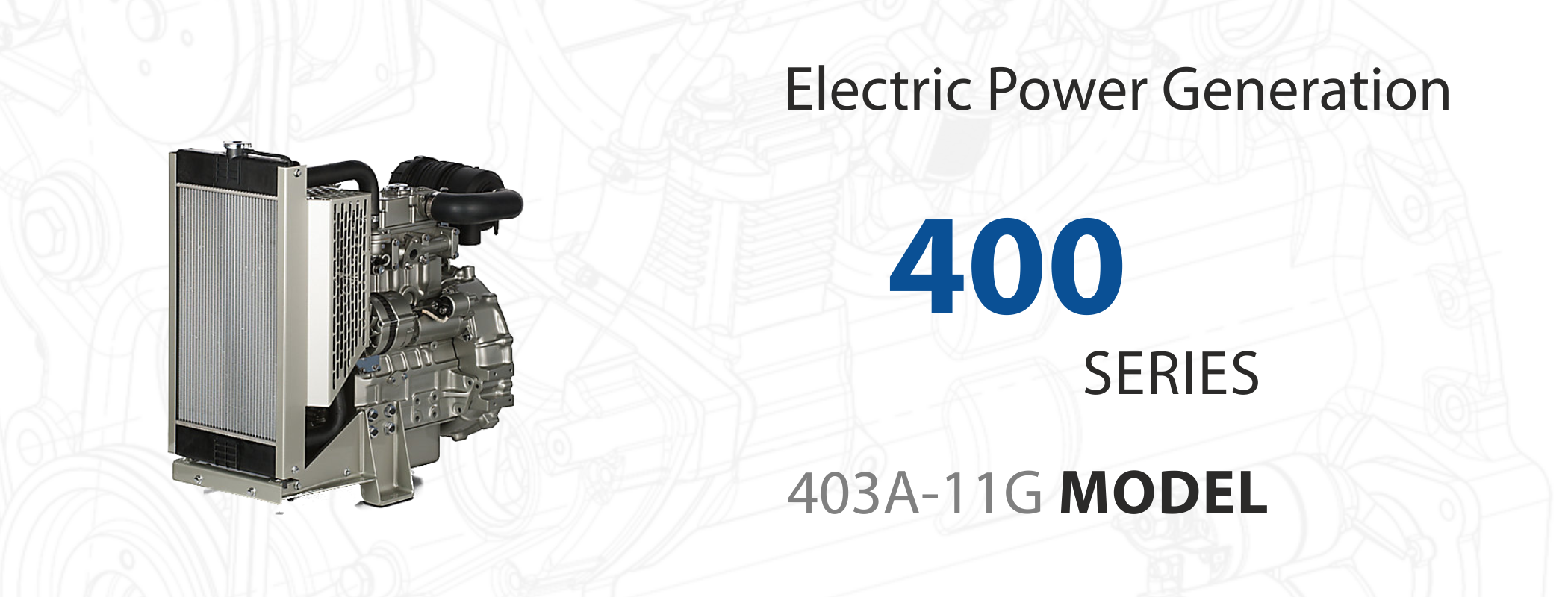

403A-11G 8 – 9 7 – 8 9 – 10 It does not comply with the emission regulations Data sheet
403A-15G 12 – 17 10 – 16 13 – 20 It does not comply with the emission regulations Data sheet

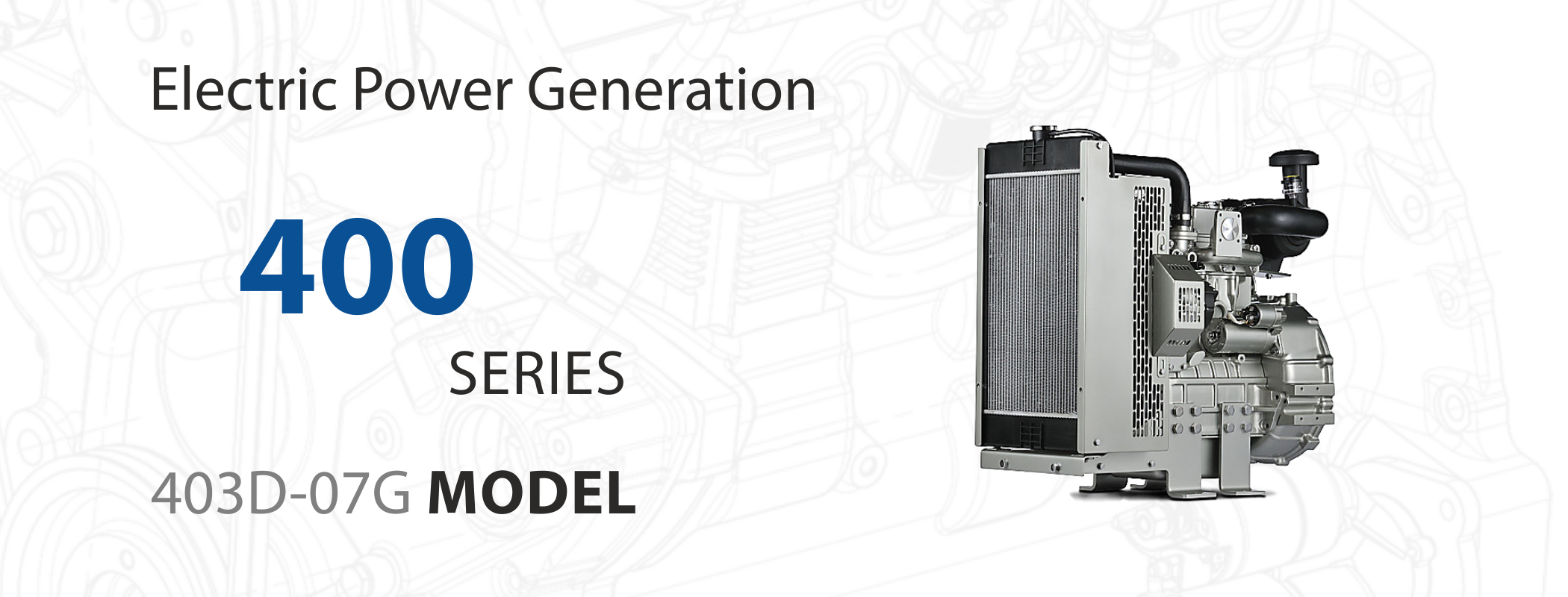

403D-07G 5 – 14 5 – 12 5 – 15 EU Stage IIIA/US EPA Tier 3 Data sheet
403D-11G 8 – 18 7 – 10 9 – 12 EU Stage IIIA/US EPA Tier 4 Interim Data sheet
403D-15G 12 – 16 10 – 14 13 – 17 EU Stage IIIA/US EPA Tier 4 Interim Data sheet
403F-07G 5 5 6 EU Stage IV/US EPA Tier 4 Final Data sheet
403F-11G 10 – 11 9 – 10 11 – 12 EU Stage IV/US EPA Tier 4 Final Data sheet
403F-15G 14 12 15 EU Stage IV/US EPA Tier 4 Final Data sheet

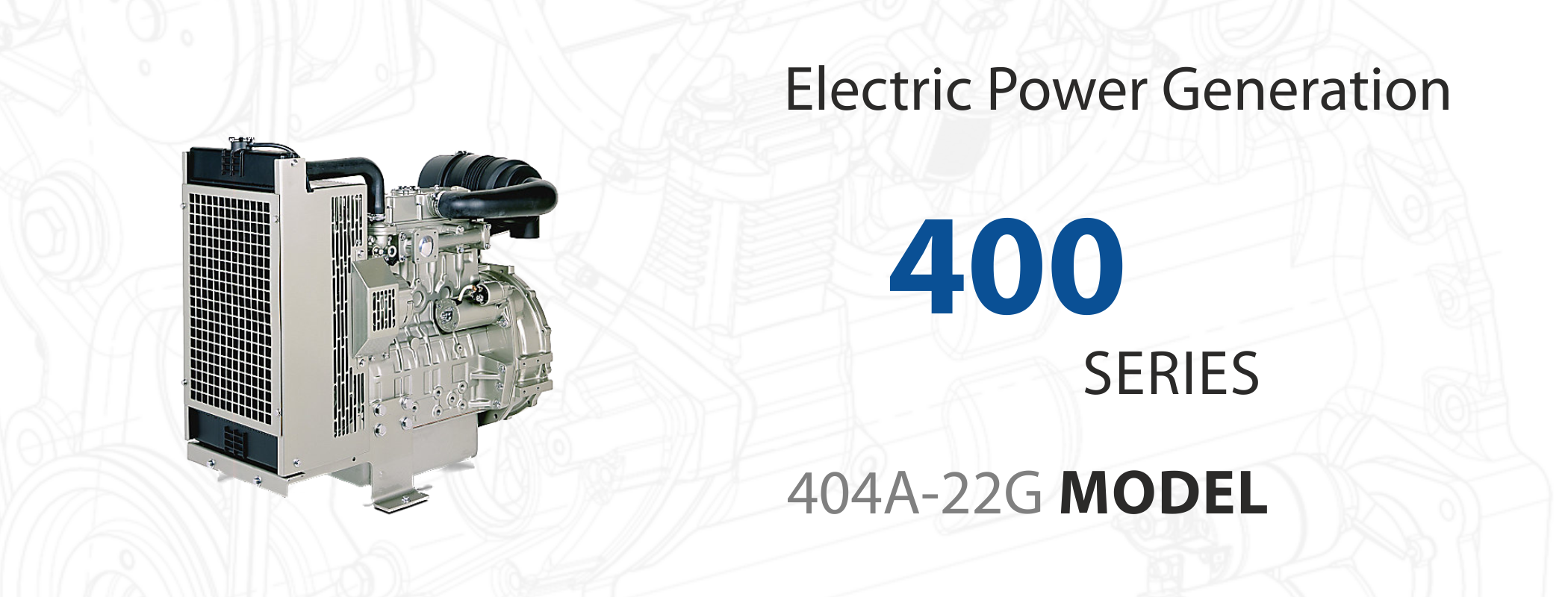

404A-22G 18 – 20 16 – 18 20 – 22 It does not comply with the emission regulations Data sheet

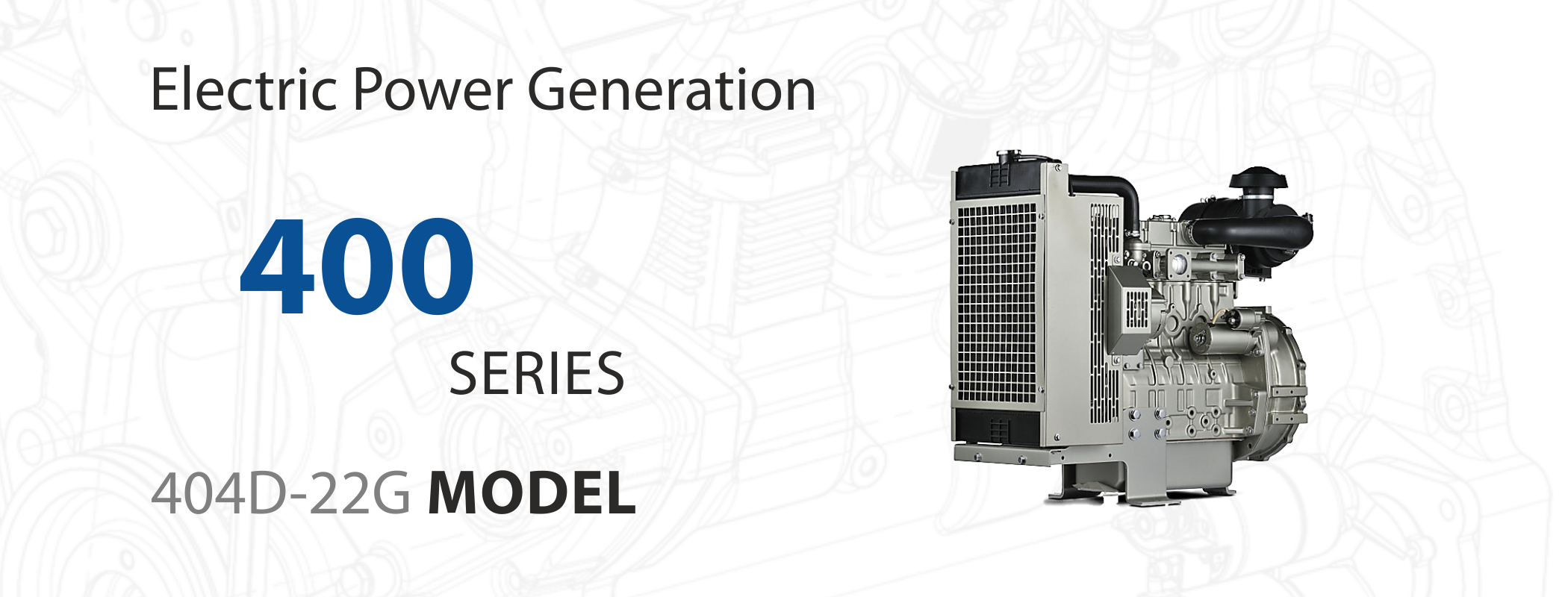

404D-22G 18 – 34 16 – 29 20 – 36 EU Stage IIIA/US EPA Tier 4 Interim Data sheet
404D-22TG 25 – 33 22 – 29 20 – 36 EU Stage IIIA/US EPA Tier 4 Interim Data sheet
404D-22TAG 32 – 36 29 – 32 37 – 40 EU Stage IIIA/US EPA Tier 4 Interim Data sheet
Technical specification:
  • Air inlet system
  • Cast iron exhaust manifold – side outlet
  • Inlet manifold
  • Control system
  • 12 volt alternator
  • 12 volt starter motor
  • Electronic Shut Off Solenoid (ESOS)
  • Cooling system
  • Coolant pump belt driven
  • Coolant temperature switch
  • Cooling fan
  • Flywheel and flywheel housing
  • Fuel system
  • Fuel injection pump
  • Spin on fuel filter
  • General
  • Cast iron engine block
  • Closed circuit breather
  • Glow plug starting aid
  • Cold start capability to –20°C (-4°F) (aided)
  • Gradeability 35° continuous
  • Oil system
  • Lubricating oil pressure switch
  • Lubricating oil sump
  • Spin on lubricating oil filter

Photo Gallery
