2800 Series

  • Kezdőlap
  • Generators Engine
  • 2800 Series
Previous Next
  • Presentation
  • Tehnical details
  • Photo Gallery

Presentation

Specifications

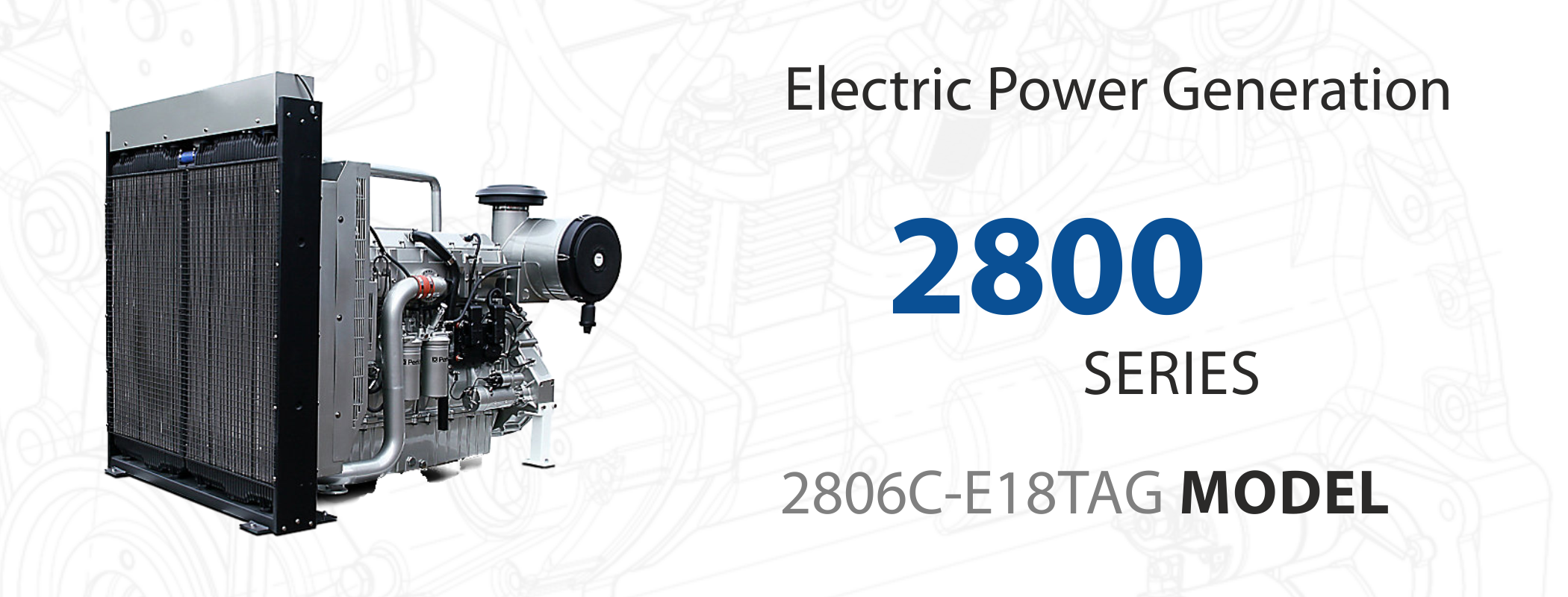

Although the Perkins 2800 range of diesel engines caters for both prime and standby generation, the engines are proving particularly popular for the standby market sector. They can deliver 514-652 kW engine power and 591-750 kVA generator output, along with mechanically operated unit fuel injectors, electronic control and carefully matched turbocharging. And, with flexible packaging, the Perkins 2800 range will fit into whatever space you have available for your equipment.

Benefits & Features

Optional equipment

Options for your 2800 range of engines include: 110 volt/240 volt immersion heater, Additional speed sensor, Temperature and pressure sensors for gauges, Electric hours counter, Air filter rain hood, Twin starters/facility for second starter, Tool kit

Our ElectropaK 2800 range of engines is delivered to you with the radiator and air cleaner system already built in, allowing you to simply bolt the engine down, connect it up and start generating. With exceptional power-to-weight ratios and compact size, the 2800 range engines are easy to transport and install, while providing you with excellent service access for ease of maintenance.

Reliability and efficiency

The engines in our 2800 range have mechanically operated unit fuel injectors, with electronic control and carefully matched turbocharging. They give the engines excellent fuel atomisation and combustion and good fuel economy. The electronic control of the injected fuel also contributes to low emissions.

Tehnical details

Model Power (kWm) Autonomy (he) Power (kVA) Emissions Specifications sheets
2806C-E18TAG 514 – 652 473 – 600 591 – 750 EU Stage II/U.S. EPA Tier 2 Data sheet
Technical specification:
  • Air inlet system
  • Mounted air filter
  • Cooling system
  • Gear driven circulating pump
  • Low coolant level switch
  • Mounted belt driven pusher fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for environments up to 50ºC (122ºF)
  • Electrical equipment
  • 3 level engine protection system
  • 24 volt starter motor
  • 24 volt alternator
  • ECM mounted on engine with wiring looms and sensors
  • Flywheels and flywheel housing
  • High inertia flywheel to SAE J620 size 18
  • Fuel system
  • Oil system
  • Front engine mounting bracket
  • Aditional systems for different applications

Photo Gallery
