2500 Series

  • Kezdőlap
  • Generators Engine
  • 2500 Series
Previous Next
  • Presentation
  • Tehnical details
  • Photo Gallery

Presentation

Specifications

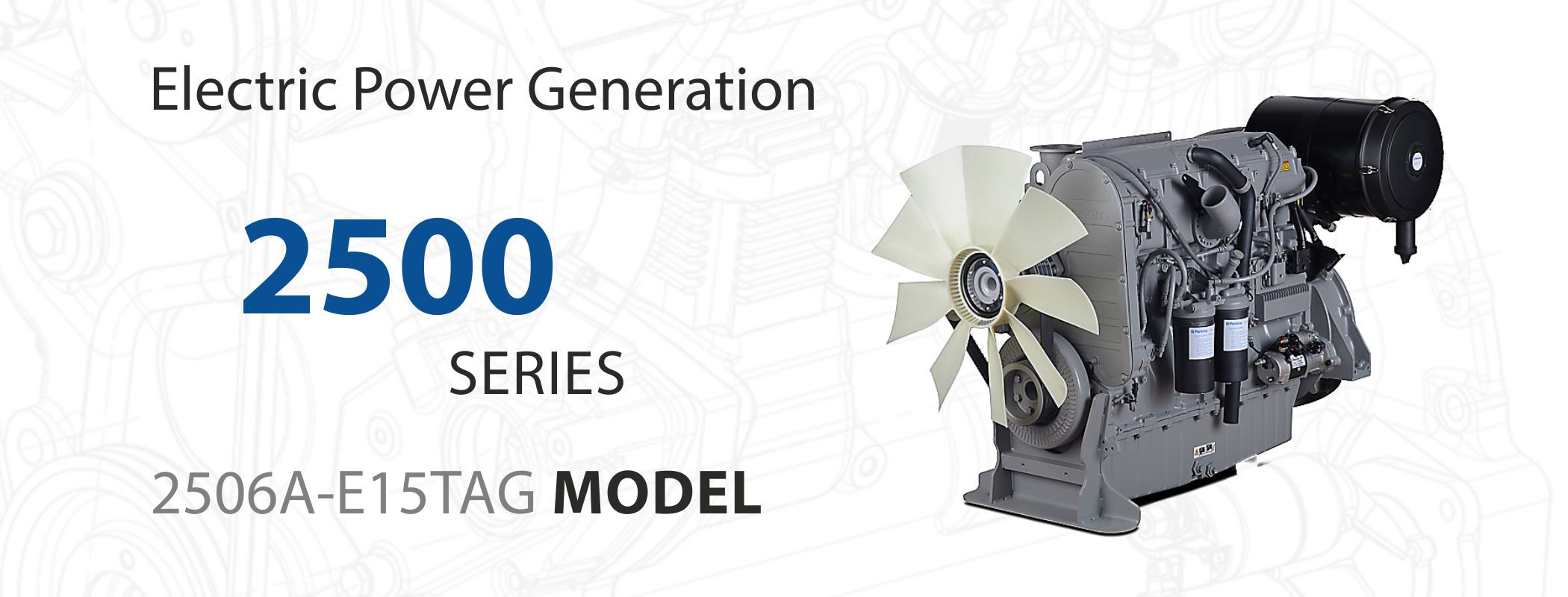

Part of our 2000 Series, the 6 cylinder Perkins 2500 range diesel engine is ideal for your power generation requirements from 455-624 kVA, whether prime or standby power. Among the features and benefits of the 2000 Series are flexible packaging to cater for the space you have available, mechanically operated unit fuel injectors, electronic control and carefully matched turbocharging. You’ll find our 2500 range gives the performance and economy you need.

Benefits & Features

Easy to transport and install

Our 2500 range engines are easy to transport and install thanks to their exceptional power-to-weight ratios and compact size, and they provide you with excellent service access for ease of maintenance.

Engines in our ElectropaK 2500 range are delivered to you complete with radiator and air cleaner system already built on, enabling you to simply bolt the engine down, connect it up and start generating.

Optimum economy

The mechanically operated unit fuel injectors, with electronic control and carefully matched turbocharging, mean you get excellent fuel atomisation and combustion with optimum economy and low emissions.

These engines give you reliable power, low oil usage and low wear rates. And with their high compression ratios, you can be assured of clean and rapid starting in all conditions.

Tehnical details

Model Power (kWm) Autonomy (he) Power (kVA) Emissions Specifications sheets
2506A-E15TAG 396 – 478 364 – 500 455 – 624 It does not comply with the emission regulations Data sheet
2506C-E15TAG 396 – 543 364 – 500 455 – 625 It does not comply with the emission regulations Data sheet
2506D-E15TAG 435 – 490 400 – 450 500 – 563 EU Stage IIIA/U.S. EPA Tier 3 Data sheet
Technical specification:
  • Air inlet system
  • Mounted air filter
  • Cooling system
  • Gear-driven circulating pump
  • Mounted belt-driven fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for environments up to 50ºC (122ºF)
  • Electrical equipment
  • 3 level engine protection system
  • 24 volt starter motor
  • 24 volt alternator
  • ECM mounted on engine with wiring looms and sensors
  • Flywheels and flywheel housing
  • High inertia flywheel to SAE J620 size 14
  • SAE ½ flywheel housing
  • Fuel system
  • Front engine mounting bracket
  • Aditional systems for different applications

Photo Gallery
