2200 Series

Contacteaza-ne »
  • Kezdőlap
  • Generators Engine
  • 2200 Series
Previous Next
  • Presentation
  • Tehnical details
  • Photo Gallery

Presentation

Specifications

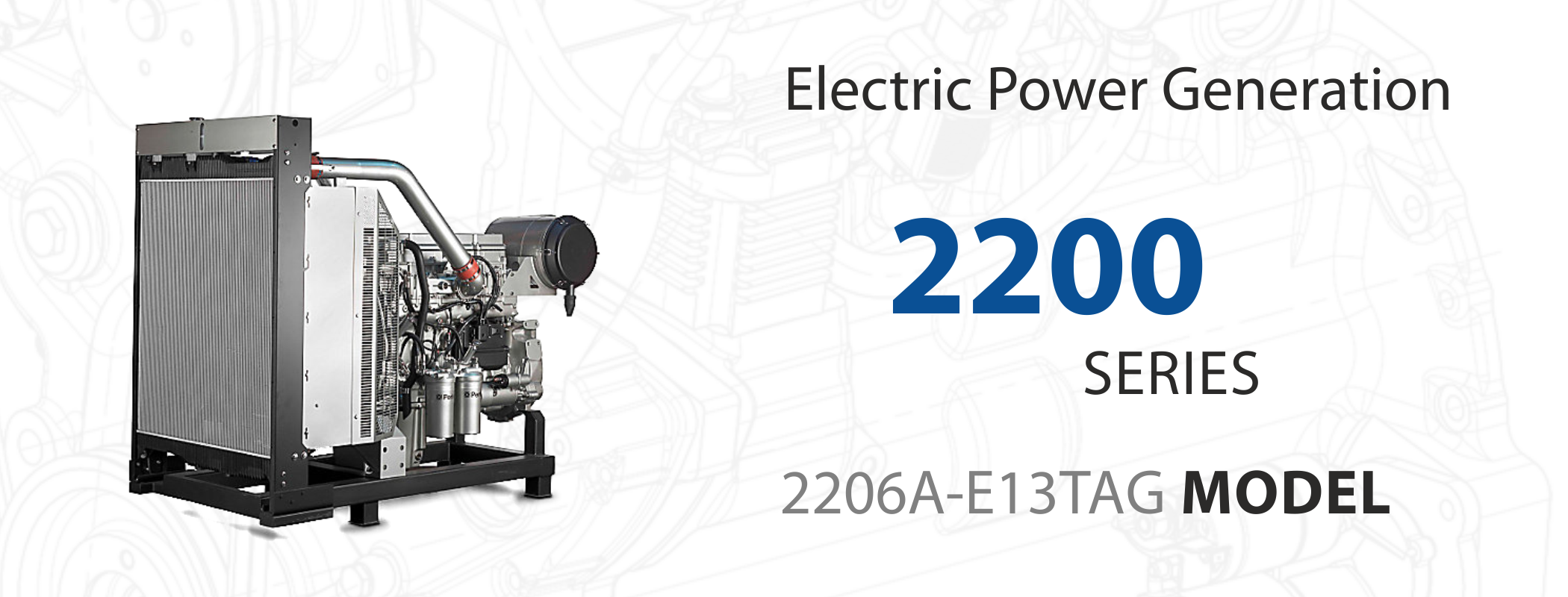

Part of our 2000 Series, the 6 cylinder Perkins 2200 range diesel engine is ideal for your power generation requirements from 350-500 kVA, whether prime or standby power. Among the features and benefits of the 2000 Series, there are flexible packaging to cater for the space you have available, mechanically operated unit fuel injectors, electronic control and carefully matched turbocharging. You’ll find that our 2200 range gives the performance and economy you need.

Benefits & Features

Compact solution

With exceptional power-to-weight ratios and compact size, our 2200 range engines are easy to transport and install and they provide excellent service access for ease of maintenance.

The engines in our ElectropaK 2200 range are delivered to you complete with radiator and air cleaner system already built on, enabling you to simply bolt the engine down, connect it up and start generating.

Reliability and efficiency

With mechanically operated unit fuel injectors with electronic control and carefully matched turbocharging, our 2200 range engines give you excellent fuel atomisation and combustion with optimum economy. The electronic control of fuel injected results in low emissions.
The engines deliver the reliable power you need. Low oil usage, low wear rates and high compression ratios mean you will get reliable, clean and rapid starting in all conditions.

Tehnical details

Model Power (kWm) Autonomy (he) Power (kVA) Emissions Specifications sheets
2206A-E13TAG 305 – 435 280 – 350 350 – 450 It does not comply with the emission regulations Data sheet
2206C-E13TAG 305 – 392 280 – 350 350 – 438 EU Stage II/U.S. EPA Tier 2 Data sheet
2206D-E13TAG 349 – 435 320 – 400 400 – 500 EU Stage IIIA/U.S. EPA Tier 3 Data sheet
Technical specification:
  • Air inlet system
  • Mounted air filter
  • Cooling system
  • Gear-driven circulating pump
  • Mounted belt-driven pusher fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for environments up to 50ºC (122ºF)
  • Electrical equipment
  • 3 level engine protection system
  • 24 volt starter motor
  • 24 volt alternator
  • ECM mounted on engine with wiring looms and sensors
  • Flywheels and flywheel housing
  • Multiple transmission interfaces available, type SAE J620 and SAE no. 14
  •  Fuel system
  • Front engine mounting bracket
  • Aditional systems for different applications

Photo Gallery
