1100 Series

Contacteaza-ne »
  • Kezdőlap
  • Generators Engine
  • 1100 Series
Previous Next
  • Presentation
  • Tehnical details
  • Photo Gallery

Presentation

Specifications

Whatever your application, there’s an 1100 Series engine for you. Part of the Perkins 1100 Series, the range’s 3, 4 and 6 cylinder, 3.3, 4.4 and 7 liters engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1100 Series range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, make it easy to install a different 1100 Series engine in your application. Choice of mechanically or electronically controlled engines depending on the power output required and application.

Benefits & Features

Designed for lesser regulated territories, the 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooler it offers the best combination of power delivery and response.

Compact package size

The compact dimensions of the 3 and 4 cylinder engines with stressed block options, meet the requirements for compact applications. Common hook-up points across the 1100 Series range enable easier upgrade to higher emissions Stages/Tiers and larger 4 and 6 cylinder engines.

The 1103 range includes a cylinder block design that ensures bore roundness is maintained under pressure, as well as giving lower combustion and mechanical noise.

Power and performance

With a maximum torque at 1400 rpm and an excellent back-up, the 3, 4 and 6 cylinder types are an ideal choice for energy application. Models in the range are either naturally aspirated or turbocharged to give you the extra power you have required.

Oil and fuel filtration

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.

Ease of maintenance

The engines have mechanical fuel injection for ease of maintenance with 500 hour service intervals and single side service components, for the ease of end user servicing.

Choice of electronic engine

A robust electronically controlled common rail engine provides the opportunity to increase power and performance, whilst maintaining displacement volume, and still achieving emissions standards. It uses advanced common rail, fuel pump and injectors, combined with the latest high capacity fuel filtration to provide an engine which is reliable when used with varying standards of fuel around the world. With an electronic control and high pressure common rail system, the engine can be fully integrated into the machine, delivering smoother operation for the user, faster response and providing operator feedback on the engine performance.

Expertise whenever you need it

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days per year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.

Tehnical details

Model Power (kWm) Autonomy (he) Power (kVA) Emissions Specifications sheets

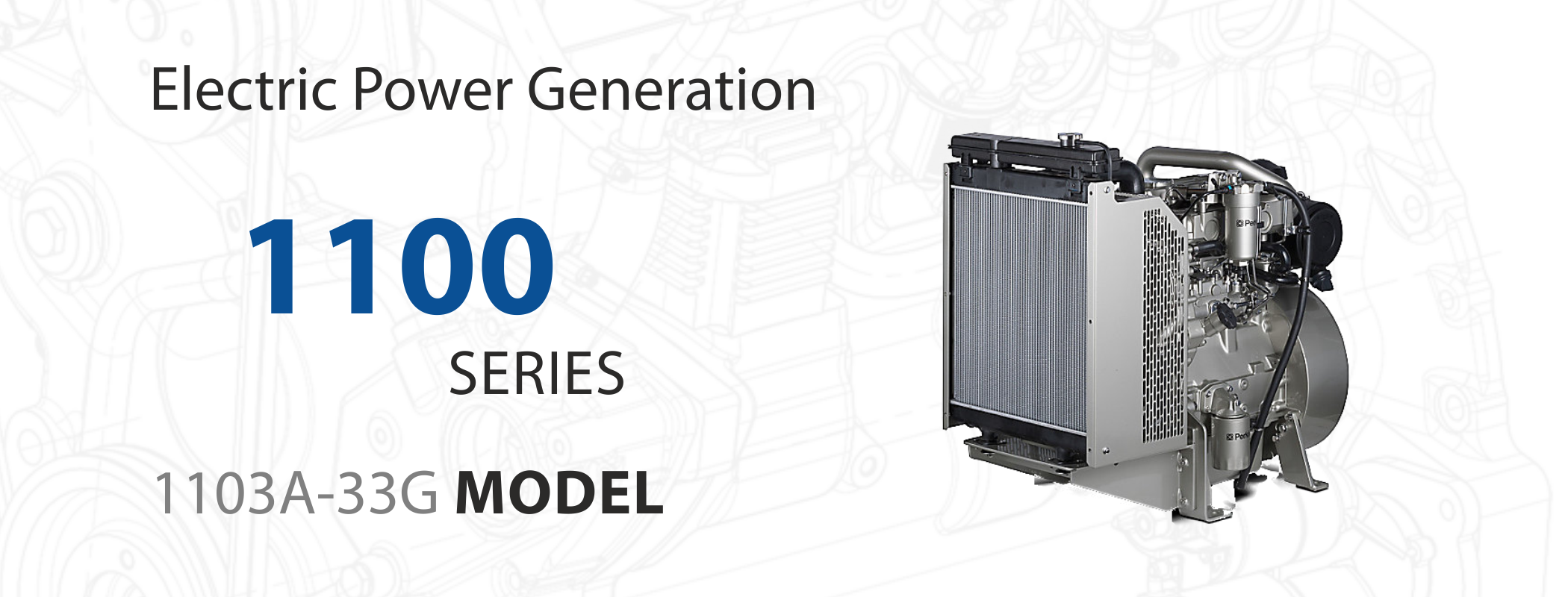

1103A-33G 28 – 35 24 – 31 30 – 38 It does not comply with the emission regulations Data sheet
1103A-33TG 42 – 68 36 – 60 45 – 75 It does not comply with the emission regulations Data sheet
1103C-33TG 41 – 52 37 – 47 46 – 59 EU Stage II/US EPA Tier 2 Data sheet

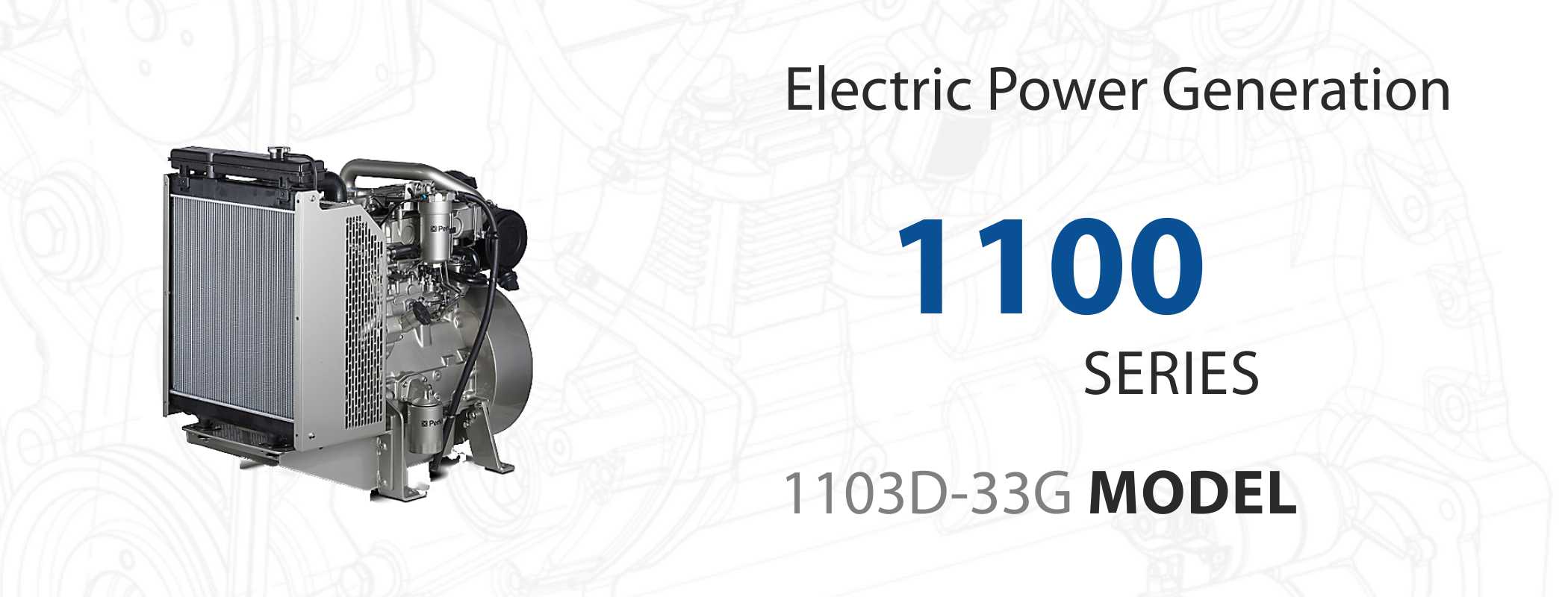

1103D-33G 29 – 37 25 – 32 32 – 40 EU Stage IIIA/US EPA Tier 3 Data sheet
1104A-44TG 58 – 90 52 – 80 65-100 It does not comply with the emission regulations Data sheet
1104C-44TG 54 – 68 48 – 60 60-75 EU Stage II/US EPA Tier 2 Data sheet

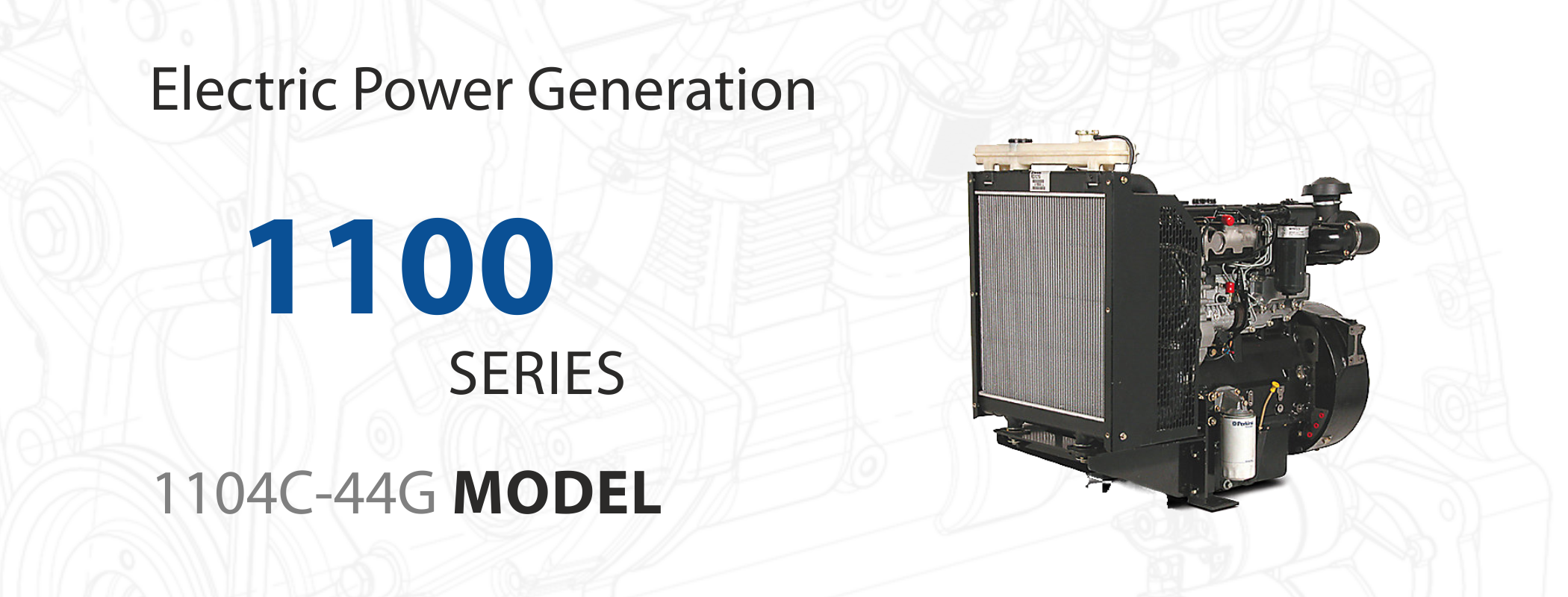

1104C-44G 39 – 52 35 – 47 44-59 EU Stage II/US EPA Tier 2 Data sheet
1104C-44TAG 72 – 112 64 – 101 80-126 EU Stage II/US EPA Tier 2 Data sheet
1104D-44TG 54 – 66 48 – 58 60-73 EU Stage IIIA/US EPA Tier 3 Data sheet
1104D-E44TG 65 – 72 59 – 65 73-81 EU Stage IIIA/US EPA Tier 3 Data sheet
1104D-E44TAG 73 – 111 64 – 100 81-125 EU Stage IIIA/US EPA Tier 3 Data sheet
1106A-70TG 118 – 145 108 – 135 135-169 It does not comply with the emission regulations Data sheet

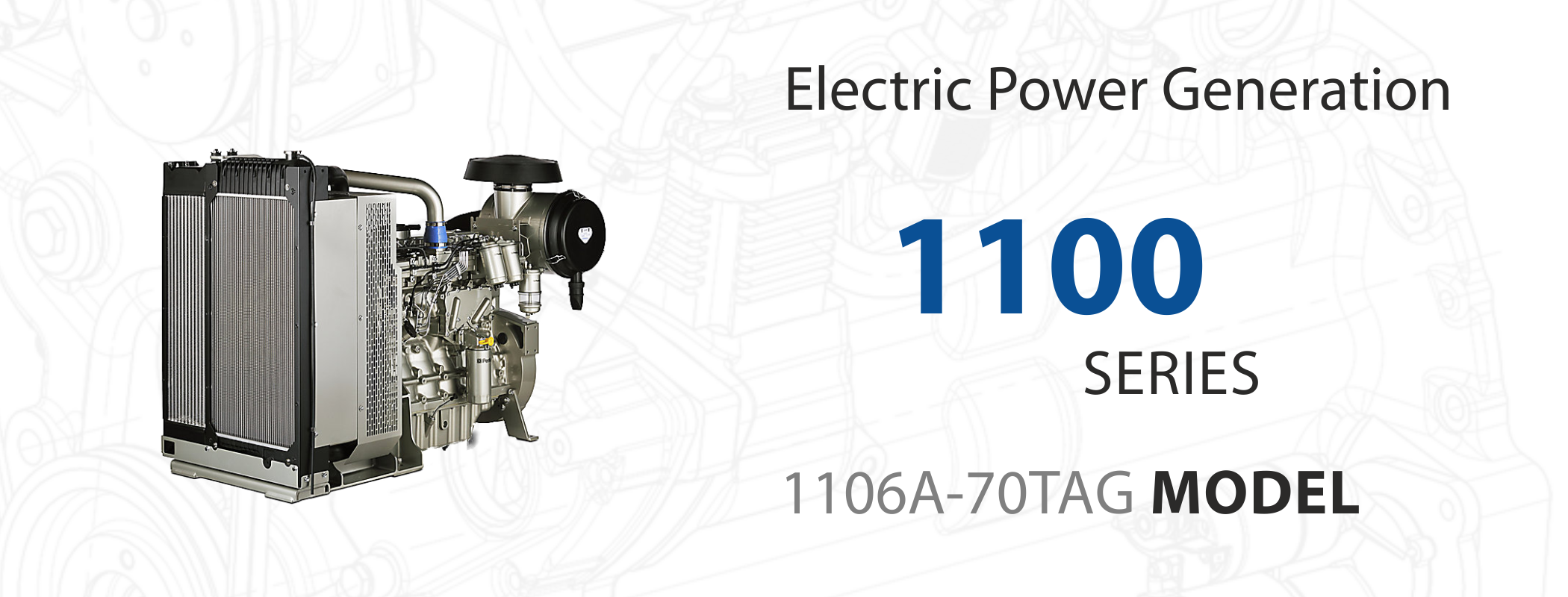

1106A-70TAG 131 – 192 120 – 176 150-220 It does not comply with the emission regulations Data sheet
1106D-E70TAG 129 – 218 114 – 200 142-250 EU Stage IIIA/US EPA Tier 3 Data sheet
Technical specification:
  • Air inlet system
  • Air filter and support of air filter
  • Exhaust manifold
  • Induction manifold
  • Control system
  • Alternator
  • Starter motor
  • Cooling system
  • Cooling pack
  • Fan drive and location
  • Flywheel and flywheel housing
  • Adaptor plate
  • Flywheel and starter ring
  • Fuel system
  • Fuel filter
  • General
  • Cold start aid
  • Engine mountings
  • Oil system
  • Lubricating oil filter and breather
  • Oil filter positions
  • Sound isolated lubricating oil sump (6 cylinders)
