TAG 60C

  • Kezdőlap
  • Agricultural tractors
  • TAG 60C
Previous Next
  • Overview
  • Technical details
  • Gallery

Overview

A tractor for which the change of accessories is carried out very quickly, thus being very easy to adapt to various works on the farm. Its project started from the idea of reliability and strength, having reduced size and minimal maintenance and operation costs. Fitted with a 58 HP diesel engine, in 4 cylinders, with turbo blower, it is the ideal tractor for works in animal husbandry, and large culture.

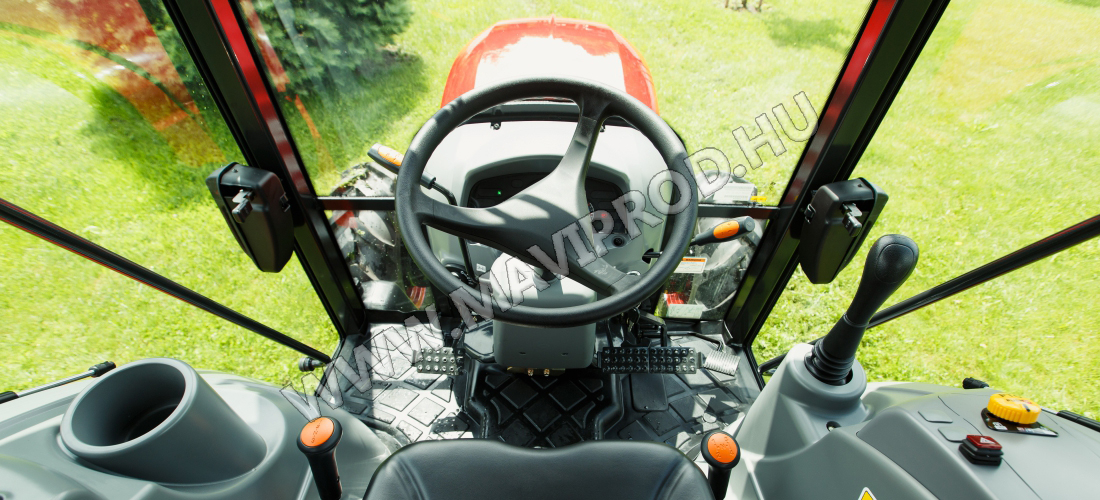

It is also recommended for work in greenhouses, solariums and in vegetable growing activities. With the possibility of being fitted with a front loader, the advantages are clearly superior. The panoramic cab, fitted with air conditioning (AC) makes the time spent in the tractor a true pleasure. It is a tractor that features an excellent quality-price ratio.
Note: The total height and ground clearance may differ depending on the size of the tires with which the tractor is equipped.

Technical details

TECHNICAL CHARACTERISTICS
Model TAG 60C
Engine Diesel, 4 cylinders in line, turbocharger, liquid based cooling
Pollution standard Stage V
Cylinder capacity 2 287 cm 3
Power 58 HP (43 kW)
Maximum torque 190 Nm – 1 600
Air filter Dry with filtering element
Fuel tank 45 l
TRANSMISSION
Gearbox Syncro Shuttle with 12 forward gears and 12 reversing gears
Clutch single-plate dry
Inverter Mechanical, with control lever on the steering wheel column, on the left side
Differential lock Mechanical
Traction 4 x 4
4×4 traction coupling Mechanical
Rear power take-off Independent with 584/791 rpm with 6 splines
PTO power 47,5 HP (35,6 kW) – 2,600 rpm
Forward travel speed 1,86-27,3 km/h
BRAKING SYSTEM
Service brake Multi-disc in oil bath (rear axle)
Parking brake With manual operation
MISCELLANEOUS
Mudguards Rear
Front weighing 6 x 17 kg with integrated towing hook
Length 1 642 mm
Width 3 421 mm
Height 2 463 mm*
Wheelbase 1 806 mm
Ground clearance 391 mm*
Net weight 1 955 kg, without counterweights
REAR FRAME
Hydraulic rear lift Three-point linkage, rapid couplings cat. II
Max. lifting capacity 1 500 kg
Mechanism Mechanical force and position control
Drawbar Fixed
Lateral anchors Telescopic
TIRES
Front 9,5-16, with fixed rims
Rear 13,6-26, with adjustable rims
HYDRAULIC SYSTEM
Direction Hydrostatic, flow rate 19 l/m
Hydraulic pump flow rate 42 l/min
Hydraulic system 2 hydraulic valves with mechanical operation, and 2 pairs of hydraulic couplings behind the tractor
CAB
Certifications ROPS și FOPS, with panoramic view
Rear window with opening Yes
Operator seat with mechanical suspension and seat belt Yes
Central console with adjustable steering wheel Yes
Wipers with windscreen and rear window washer Yes
Air conditioning AC with heating and ventilation Yes
Side mirrors Yes
Electrical system 12 V with general contact, 12 V socket in the cab, 7-pin socket for the trailer behind the cab, lighting system for traffic on public roads
Working lights 4, 2 front/2 rear
Radio equipment Speakers and antenna

  Note:
The total height and ground clearance may differ depending on the size of the tires with which the tractor is equipped.

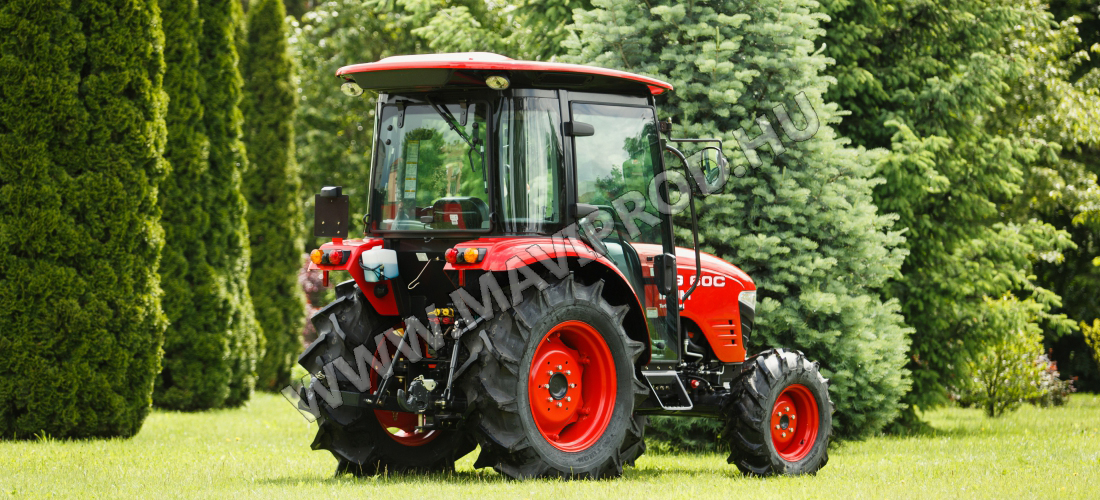

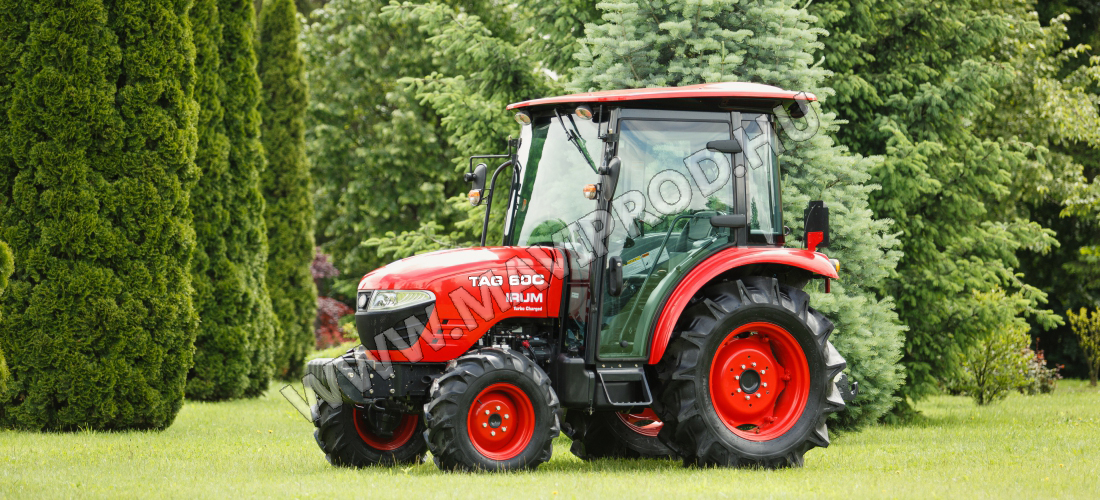

Gallery
