TAG 24R

  • Kezdőlap
  • Agricultural tractors
  • TAG 24R
Previous Next
  • Overview
  • Technical details
  • Photo gallery

Overview

A tractor suitable for family farms with small areas of land and not only. Being small in size and without a cab, it successfully manages the works in vegetable growing, solariums, viticulture, fruit growing, but it can also show its value in the field, in the works of mowing, raking and not only.
It successfully combines operator comfort and high productivity, with an affordable cost.
Note: The total height and ground clearance may vary depending on the size of the tires that the tractor is fitted with.

Technical details

TECHNICAL CHARACTERISTICS
Model TAG 24R
Engine Diesel, 3 cylinders, liquid based cooling
Pollution standard Stage V
Cylindrical capacity 1 175 cm 3
Engine power 24 HP (18 kW)
Maximum torque 65 Nm at 2100 rpm
Air filter Dry with filtering element
Fuel tank 23 l
TRANSMISSION
Gearbox 6 forward gears and 2 reversing gears
Clutch single-plate dry
Differential lock Mechanical
Traction 4×4
4×4 traction coupling Mechanical
Rear power take-off Independent with 584/791 rpm with 6 splines
Rear power take-off power 21 HP-2600 rpm
Forward travel speed 1,02-22,9 km/h
BRAKING SYSTEM
Service brake Multi-disc in oil bath (rear axle)
Parking brake With manual operation
HYDRAULIC SYSTEM
Direction Hydrostatic, flow rate 13 l/min
Hydraulic pump flow rate 18,2 l/min
Hydraulic system 1 hydraulic valve with mechanical operation, and 1 pair of hydraulic couplings behind the tractor
REAR FRAME
Hydraulic rear lift Three-point linkage, couplings cat. I
Max. lifting capacity 650 kg
Mechanism Mechanical position control
Drawbar Fixed
Operator seat With mechanical suspension and seat belt
Side mirrors Yes
Electrical installation 12 V with general contact, 7-pin socket for the trailer behind the tractor
Lighting system For traffic on public roads
TIRES
Front 7-16, with fixed rims
Rear 11,2-20, with adjustable rims
MISCELLANEOUS
Mudguards rear Yes
Front weighing 3 x 20 kg with integrated towing hook
Length 3 122 mm
Width 1 369 mm
Height 2321 mm*
Wheelbase 1 670 mm
Net weight 923 kg, without counterweights
Ground clearance 417 mm*

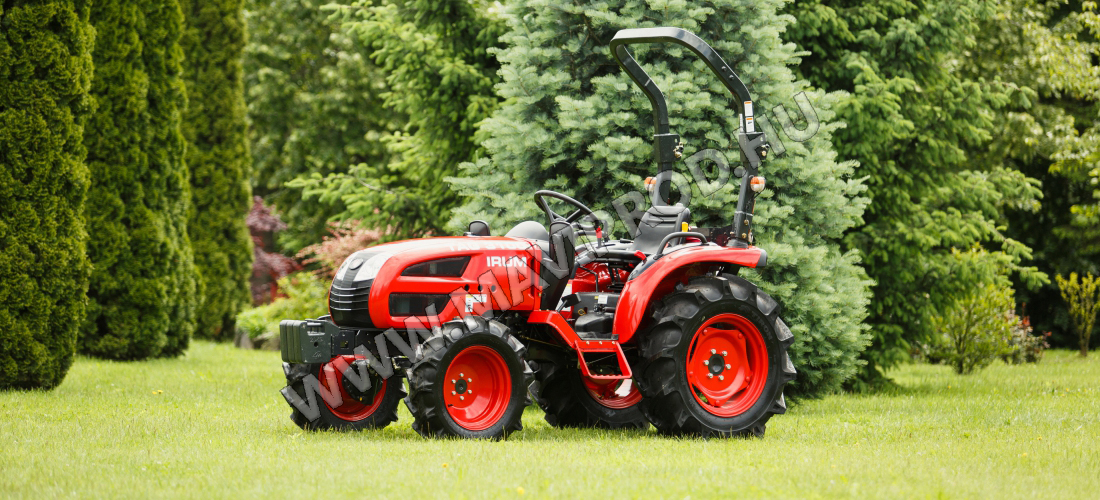

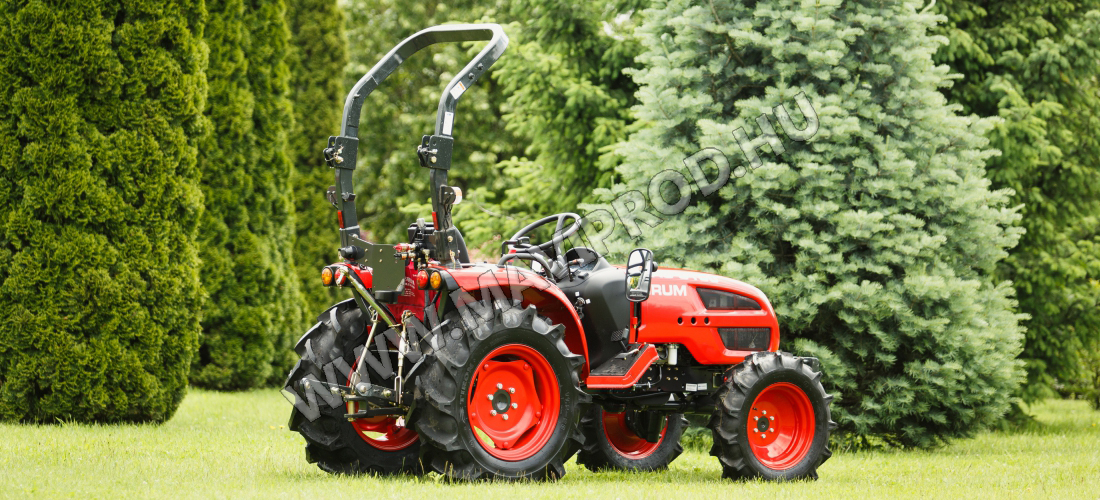

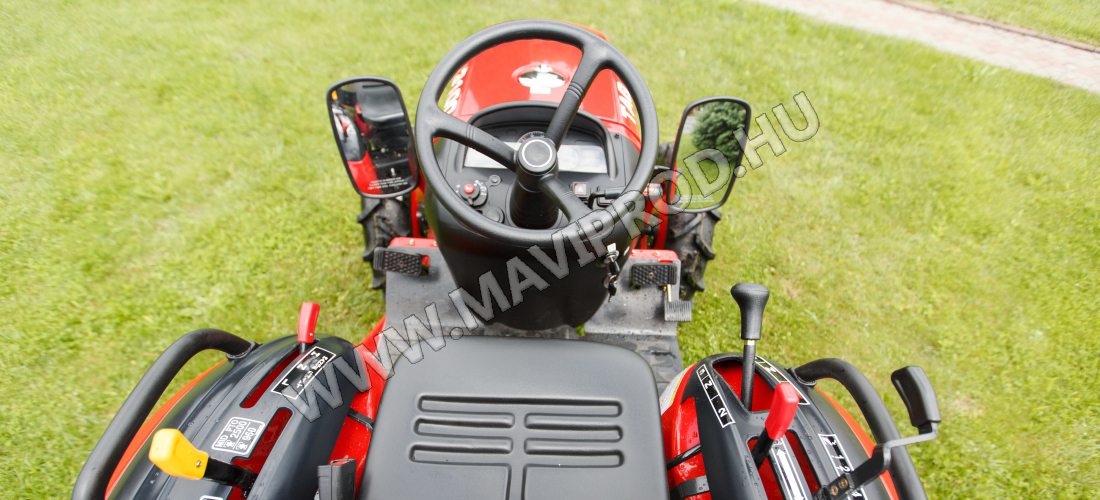

Photo gallery
